What is NMEA 2000?

What is NMEA 2000?

• 2025-03-18 10:16:32
• by Admin

NMEA 2000 is a marine data network communications standard published by the National Marine Electronics Association (NMEA).

It is based on CAN (Controller Area Network) technology and allows high-speed, reliable data exchange between various electronic devices on board (e.g. navigation equipment, engine controls, sensors, etc.).

NMEA 2000 stands for National Marine Electronics Association 2000. The limitations of the NMEA 0183 standard are that it allows only unidirectional communication and low data rates.

Compared to the previous NMEA 0183 standard, NMEA 2000 offers higher data rates, greater immunity to interference, simpler cabling requirements, and better scalability.

It uses standard plugs and cables, making connecting and replacing equipment easier.

The development of NMEA 2000 is the result of long-term cooperation between companies in the marine electronics industry. The goal was to create a high-speed, multi-point communications network that could be used for all marine applications.

The original version of NMEA 2000 was based on the CAN (Controller Area Network) protocol, which is widely used in the automotive industry.

The CAN protocol allows multiple devices to communicate with each other over a single bus, allowing large amounts of data to be exchanged at high speed.

The NMEA 2000 is designed similarly but with additional features and functionality for the marine environment.

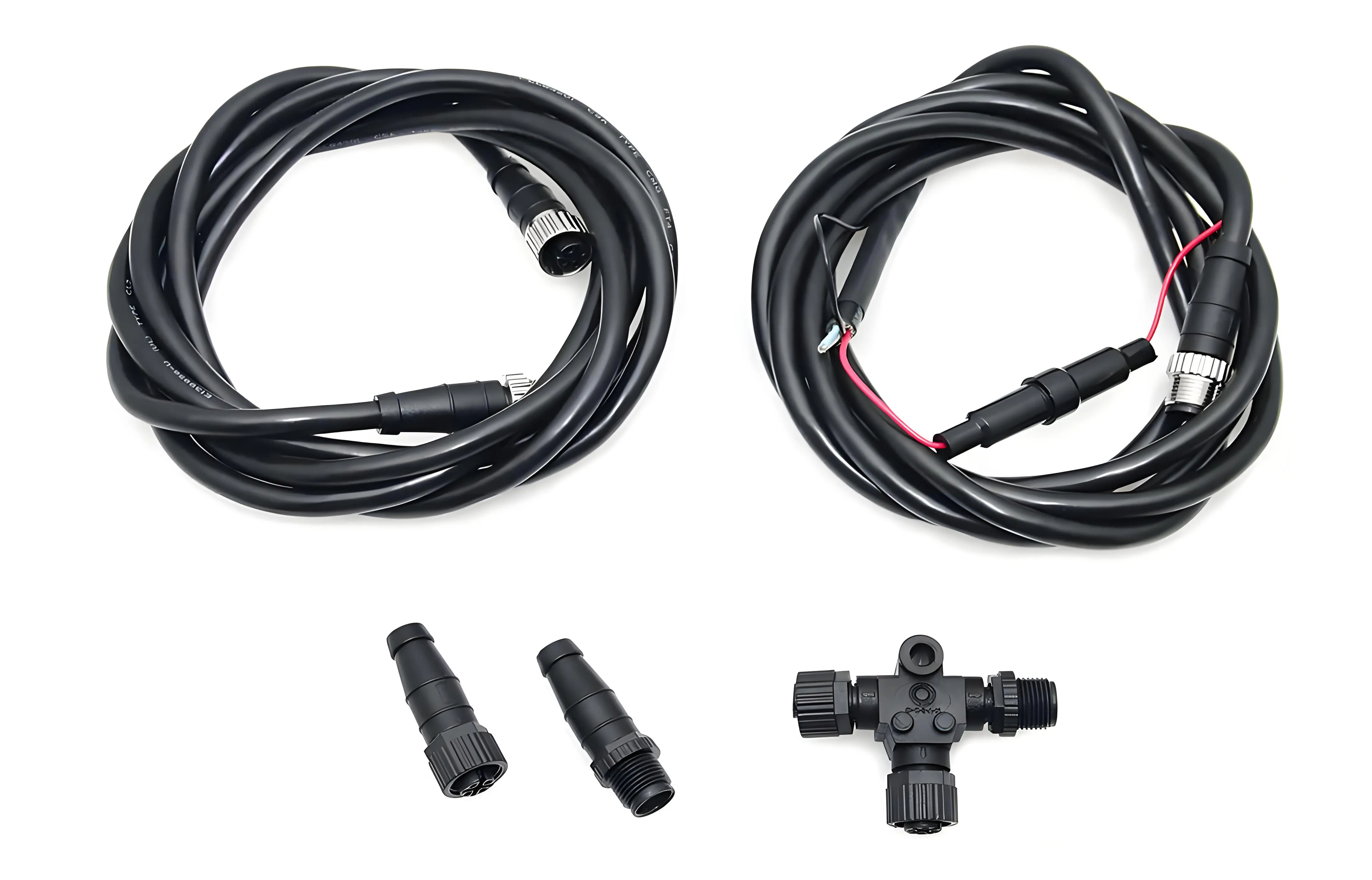

NMEA 2000 wiring has certain specifications and requirements.

The following are details of NMEA 2000 wiring:

The NMEA 2000 wiring system is a digital network used to connect various systems and equipment on board such as radar, GPS, depth sensors, meteorological environments, and hull control systems.

The NMEA 2000 Bus connects various devices and systems via bus connectors that transmit data over cables with up to four pairs of signal lines on each connector.

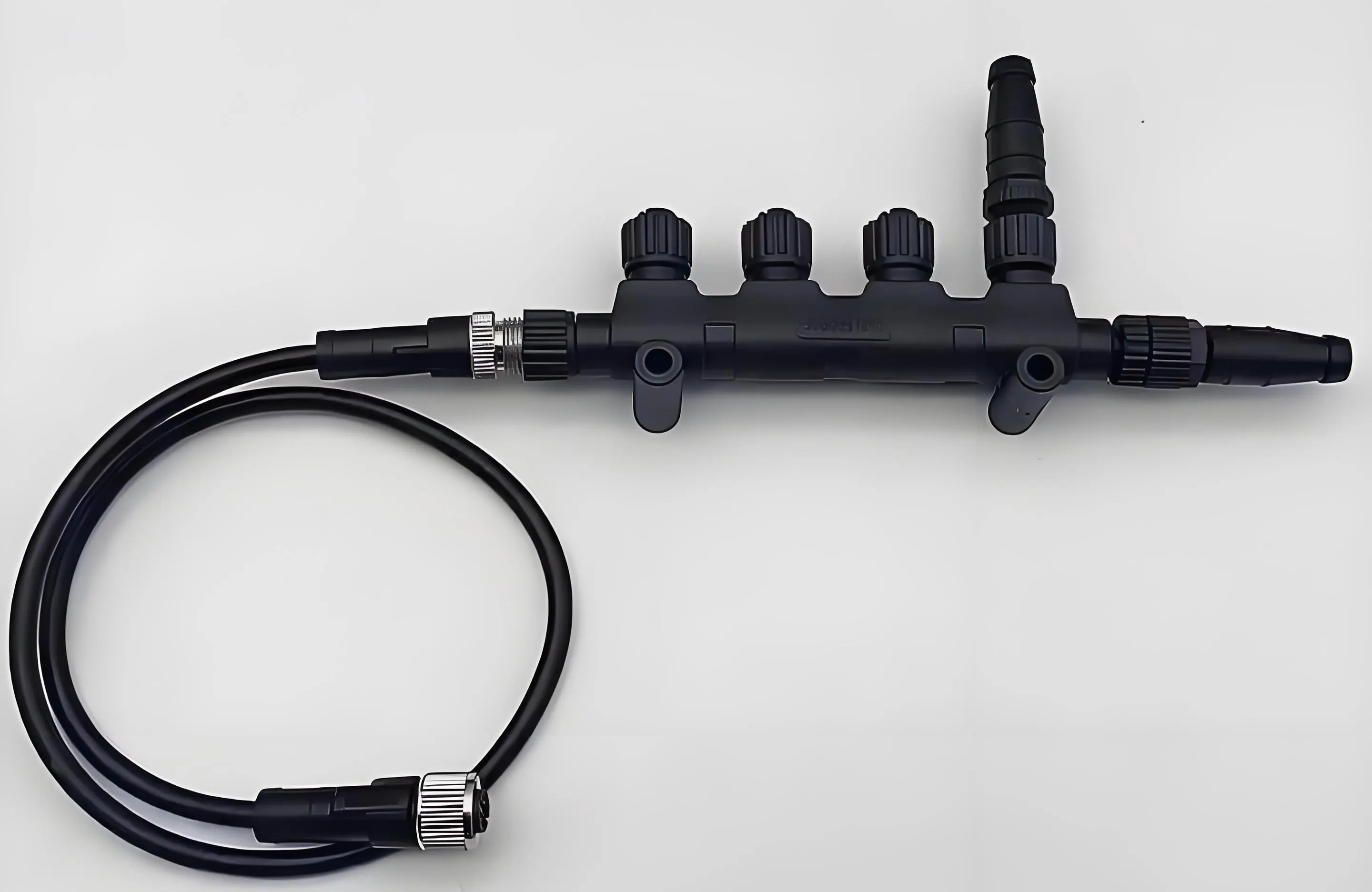

The NMEA 2000 Bus interface supports multi-connector, multi-device operation with high reliability and excellent data transfer speeds.

Classification of NMEA 2000 Bus Connectors:

1、Device Connectors

The NMEA 2000 device connector is a connector used to connect devices to the bus. This connector usually has only one plug connector and two converters.

2、System Connectors

NMEA 2000 system connectors are used to connect different NMEA 2000 bus system connectors. This is a more complex type that connects all the connectors.

3、Power Connectors

The NMEA 2000 Power Connector is used to provide power from the bus. The design of this connector allows compatibility with other connectors.

Mechanical and Electrical Characteristics of NMEA 2000 Connectors:

Mechanical characteristics

The mechanical characteristics of the NMEA 2000 connectors include connector material and connection angle. They can operate in a more stable environment.

The electrical characteristics of NMEA 2000 connectors describe their performance when connecting devices and transferring data. These characteristics help to identify and repair faults.

Cable Characteristics

NMEA 2000 connectors typically use coaxial or twisted pair cables. They provide reliable and consistent data transmission.

Connector Installation and Removal:

How to correctly connect and remove NMEA 2000 connectors

The devices on the NMEA 2000 must be connected correctly, otherwise connection problems may occur. Several online resources and videos on the correct connection and removal of connectors are available to help you understand the process.

Connector Tool:

NMEA 2000 connector tools are specialized tools for mounting and dismounting connectors. These tools can be used on any part of the connector system.

Cable installation and protection:

After selecting the appropriate cables and cable protectors for your NMEA 2000 connectors, make sure they are securely fitted to the boat to avoid mishandling, such as cable locking and loosening, which could fail to transmit data.

Connector Troubleshooting:

Improper operation or loss of signal

It is possible that the connector is not properly connected or is faulty, resulting in poor data transmission.

Check that the connector is correctly plugged in and that the device cable is not damaged or disturbed and carry out a simple cleaning.

Faulty connector:

If the problem persists after attempting to repair and clean the connector, the connector itself may be faulty.

Use instruments and professional advice to confirm and locate the fault - replace the connector as soon as possible.

Abnormal bus power or signal:

When the bus fails or loses connection, the device may experience data unavailability, false alarms, and other abnormalities.

Attempting to reconnect or seeking professional troubleshooting solutions can be effective in resolving the problem.
